Metallized Polypropylene Film
AC Motor Start and Run Capacitors - Fuse Protection (P2) SMPA-FUSE Series
AC Motor Start and Run Capacitors - Fuse Protection with Coil (P2) SMPA-COIL Series
Fuse Protection
Fuse Protection with Coil
Features
Long life due to self-healing characteristic.
High moisture resistance.
Film functional as fuse, prevent capacitors to be damaged by surge voltage.
Active and passive flame retardant (UL94 V-0).
Capacitor integrated with inductor, save more space.
Applications
AC Motor Start and Run Capacitors are widely used for electric motors starting or running such as air conditioner, refrigerator, washing machine, dishwasher, motor pump, bread maker, fan, electrical power tool, power supply, UPS, etc.
Specifications
| Working Voltage Range |
125 ~ 460VAC
|
| Capacitance Range
|
0.01 ~ 74μF
|
| Capacitance Tolerance
|
J (±5%), U (+10-5%), K (±10%), M (±20%)
|
| Temperature Range
|
-25 ~ +70℃ / 85℃, -40 ~ +85℃ / 100℃
|
| Rated Working Frequency Range
|
50 ~ 60Hz
|
| Dissipation Factor
|
≤ 1% Max. Measured at 1kHz 20℃
|
| Between Terminals(T-T)
|
Rated voltage x 175% VAC 10sec
|
| Between Terminals and Case(T-C)
|
2000VAC, 60sec
|
Constructions of Winding Elements

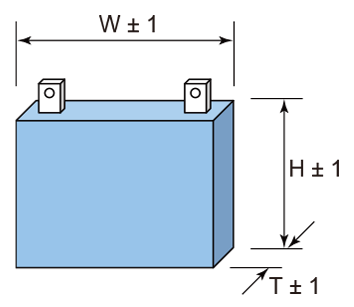

Size Deviation (Unit: mm)

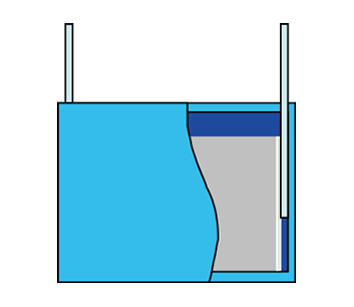

CP Wire Sectional View

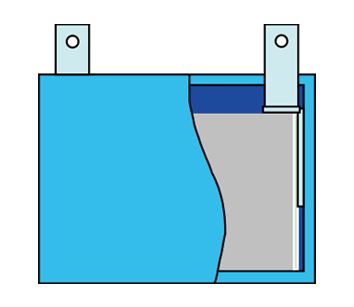

Fast-on Terminal Sectional View

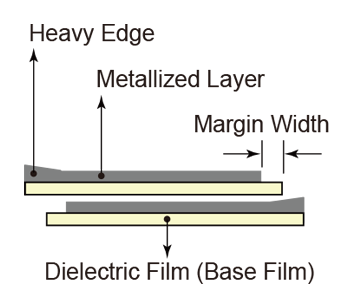

Film Cross Sectional View

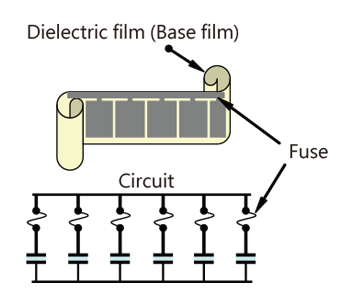

Film Segmented Type Sectional View
Model and Type
Type→
Model↓
|
BX
|
BL
|
BF
|
BP
|
BU
|
RO
|
| A
|
|
|
|
|
|
|
| B
|
|
|
|
|
|
|
| C
|
|
|
|
|
|
|
| D
|
|
|
|
|
|
|
| E
|
|
|
|
|
|
|
| F
|
|
|
|
|
|
|
| G
|
|
|
|
|
|
|
| H
|
|
|
|
|
|
|
| I
|
|
|
|
|
|
|
| J
|
|
|
|
|
|
|

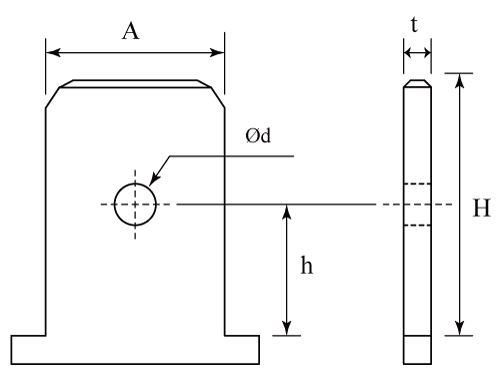

Dimensions of Fast-on Terminals
Terminal→
Dimensions↓
|
110
|
187
|
205
|
250
|
±Tolerance
|
| A |
2.80 |
4.75 |
5.25 |
6.35 |
0.25 |
| H |
7.50 |
6.35 |
7.00 |
8.00 |
0.50 |
| h |
5.30 |
3.50 |
4.00 |
4.00 |
0.20 |
| t |
0.50 |
0.50 |
0.80 |
0.80 |
0.05 |
| Ød |
1.25 |
1.35 |
1.65 |
1.65 |
0.05 |
(Unit: mm)
