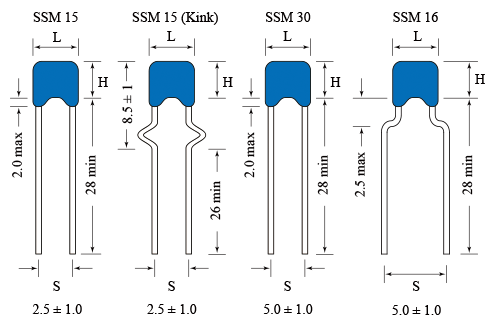

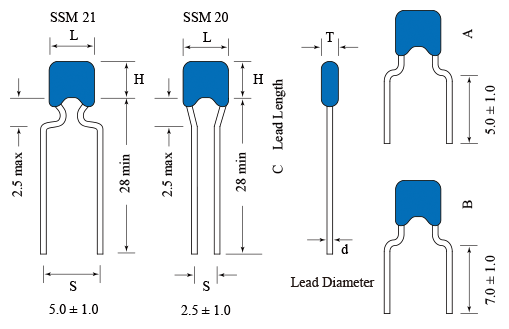

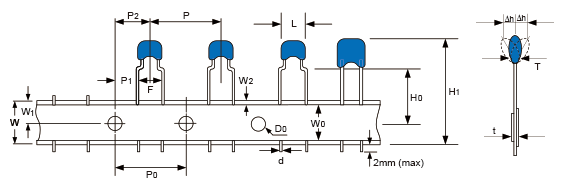

Dimensions
Chart

Multilayer Ceramic Capacitors

Radial-Leaded

Type: SSM-Radial

Features

  1. Flame retardant epoxy.
  2. 6.3V, 10V, 16V, 25V, 50V, 100V ~ 3KVDC.
  3. NPO, X5R, X7R, Y5V Temperature coefficients.
  4. High Capacitance in miniature size, high performance, and high reliability.
  5. Radial Type Lead Material: Tinned copper wire or Tinned copper clad steel wire (CP wire).

Specifications

NPO X5R
Rated Voltage 6.3VDC ~ 3000VDC
Capacitance Range 1pF to 100μF
Capacitance Tolerance

Note:
B, C, D: Cap.<10pF
F, G, J, K, M, Z: Cap. ≥ 10pF
B = ±0.1pF
C = ±0.25pF
D = ±0.5pF
F = ±1%
G = ±2%
J = ±5%
J= ±5%
K = ±10%
M = ±20%
Z = +80% ~ -20%
Operating Temperature
-55℃ ~ +125℃ - 55℃ ~ +85℃
Capacitance Change 0 ± 30ppm/℃ ±15%
Capacitance Test:
@25℃ or referred to +25℃
1.0Vrms±0.2, 1kHz±10%
1.0Vrms±25, 1MHz±10% for
capacitance ≤ 1000pF
1.0±0.2Vrms, 1kHz±10%
Q/Dissipation Factor C<30pF: Q ≥ 400 + 20C
C ≥ 30pF: Q ≥ 1000
0.1% Max.
≥ 50V: 2.5% ~ 3%
25V: ≤ 3.5% ~ 10%
16V: ≤ 3.5% ~ 10%
10V: ≤ 5.0% ~ 10%
6.3V: ≤ 10% ~ 15%
Insulation Resistance 10GΩ or 500MΩ.μF, whichever is less at 25℃
Dielectric Strength
≤ 50V 250% of rated voltage for 5 seconds at 50mA
51V ~ 100V 300% of rated voltage for 5 seconds at 10mA
200V ~ 300V 200% of rated voltage for 5 seconds at 10mA
500V ~ 990V 150% of rated voltage for 5 seconds at 10mA
1000V ~ 3000V 120% of rated voltage for 5 seconds at 10mA

X7R Y5V
Rated Voltage 6.3VDC ~ 3000VDC
Capacitance Range 1pF to 100μF
Capacitance Tolerance

Note:
B, C, D: Cap.<10pF
F, G, J, K, M, Z: Cap. ≥ 10pF
J = ±5%
K = ±10%
M = ±20%
Z = +80% ~ -20%
M = ±20%
Z = +80% ~ -20%
Operating Temperature -55℃ ~ +125℃ - 25℃ ~ +85℃
Capacitance Change ±15% +30% ~ -80%
Capacitance Test:
@25℃ or referred to +25℃
1.0±0.2Vrms, 1kHz±10%
Q/Dissipation Factor ≥ 50V: 2.5% ~ 3%
25V: ≤ 3.5% ~ 10%
16V: ≤ 3.5% ~ 10%
10V: ≤ 5.0% ~ 10%
6.3V: ≤ 10% ~ 15%
≥ 50V: 5% ~ 7%
25V: ≤ 5% ~ 9%
16V: ≤ 7% ~ 12.5%
10V: ≤ 12.5%
6.3V: ≤ 20%
Insulation Resistance 10GΩ or 500MΩ.μF, whichever is less at 25℃
Dielectric Strength
≤ 50V 250% of rated voltage for 5 seconds at 50mA
51V ~ 100V 300% of rated voltage for 5 seconds at 10mA
200V ~ 300V 200% of rated voltage for 5 seconds at 10mA
500V ~ 990V 150% of rated voltage for 5 seconds at 10mA
1000V ~ 3000V 120% of rated voltage for 5 seconds at 10mA
