Metal Oxide Varistors
Type: SSR
Features
- High performance withstanding surge currents.
- Short response time to surge voltage.
- Excellent clamping characteristics.
- High reliability.
- Voltage: 18V ~ 1100V.
Applications
- Consumer electronics.
- Industrial electronics.
- Communication electronics.
- Measuring and controlling systems.
- Electronic home appliances.

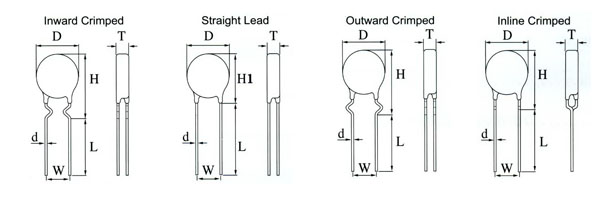

Dimensions
|
Series (Unit: mm)
|
5D, 5E
|
7D, 7E
|
10D, 10E
|
14D, 14E
|
18E
|
20D, 20E
|
25D
|
|
D Max.
|
7.0
|
9.5
|
14.0
|
17.5
|
21.0
|
24.0
|
28.5
|
|
d(±0.01mm)
|
0.6
|
0.6
|
0.8
|
0.8
|
0.8
|
1.0
|
1.0
|
|
W(±1.0mm)
|
5.0
|
5.0
|
7.5
|
7.5
|
7.5
|
10.0
|
12.7
|
|
H Max.
|
12.5
|
14.5
|
20.0
|
22.5
|
27.5
|
29.5
|
36.5
|
|
H1 Max.
|
10.0
|
12.0
|
17.0
|
20.5
|
24.0
|
28.0
|
34.0
|
|
T Max.
|
4.9
|
4.9
|
8.5
|
8.5
|
9.0
|
9.0
|
9.5
|
|
